We use asphalt mixing plant to blend aggregates and asphalt cement (bitumen). This is done in a mixer at elevated temperature. It will help in producing a homogeneous mixture of asphalt paving material. Aggregates used can be a single-sized material or it can be a combination of various sizes of gravel and sand. A good asphalt mixing plant has to produce quality HMA by mixing the desired quantity of materials at set temperature. The filler material can be added into this mixture to achieve additional binding. Some types of additives or coloured material can also be added to produce quality asphalt.
There are two major types of asphalt plants, but we can also classify them into three types like:
- Batch type
- Parallel flow drum mixers
- Counterflow drum mix plants
Apart from this we also have mobile type asphalt mixers like drum mix plants (parallel-flow type), drum mixers (counter-flow) type and also batch type asphalt mixers for sale.
All three types of HMA will serve a single purpose which is to produce hot mix asphalt. The method which is used by each type of asphalt plant is different and the quality also varies slightly. The operation procedure of each type of asphalt plant is different from each other. Also, the flow of materials is different in each type – which makes each type unique in producing HMA.
Asphalt Mixing (Batch) Plant With Natural Gas Burner
Atlas is a manufacturer and exporter of asphalt mixing (batch) plant with a natural gas burner. Our specialty and expertise are that we are able to export our road and civil construction machines to over 38 countries. The timely delivery schedule coupled with top-notch quality has enabled us to win clients. Consistent service support and low cost of spare parts have allowed us to retain clients.
Below is the video of Atlas asphalt mixing plant with natural bag burner:

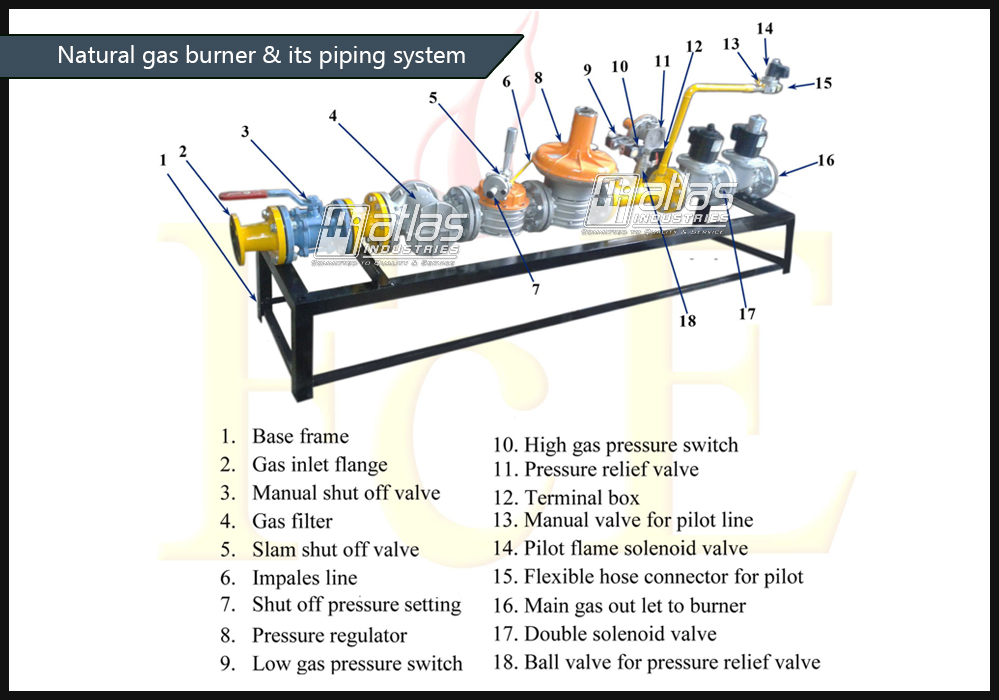

Natural Gas Burner And Its Fuel Piping System
Natural gas burner by Atlas can be incorporated in hot mix plants with all safety systems. It comes with all necessary safety standards and interlocks to prevent accidents. We have already proven worth with other fuel burners operating on diesel, FO, and LDO. Natural gas burners offer an excellent option to customers in their asphalt mix plants to have additional fuel that is reliable and cost-effective.
Our expertise lies in providing asphalt plants with burners with a natural gas burner. It is possible to incorporate a wide range of burner models suitable to work with different natural gas pipe sizes. The range starts from as small as 40 mm to 75 mm. Below are the details of the fuel piping system of natural gas burner:
Atlas is India based manufacturer and exporter of civil and road construction equipment. We have asphalt batch plants ranging from 60 tph to 260 tph. Contact Atlas Industries and know how we can help you.
